| Color: |
Green,Red,Black,Yellow,White,Blue |
Number Of Plies: |
2-4-6-8-10-12-16-20-22-28 Layer |
| Copper Thickness: |
1-4oz |
Base Material: |
FR4 ,Rogers , Aluminum ,Hight TG |
| Board Thickness: |
0.6～1.0～1.2～1.6～2.0～2.5～3.0～3.2mm |
Surface Finishing: |
HASL(lead Free) / Immersion Gold /osp / Immersion Tin/Immersion Silver |
| Min. Hole Size: |
3mil |
Service: |
OEM Services Provided,PCB/Components Sourcing/Soldering/Programming/Testing..,One-stop Turnkey Service,One Stop Turnkey Service,PCBA |
| Surface Finishing: |
HASL,ENIG,OSP,HASL Lead Free,spray Tin |
Application: |
Electronics Device,ru 94v0 Pcb Printed Circuit Board,Consumer Electronics,rigid Fpc,mobile Usb Charger |
| High Light: |
HASL Flexible PCB Board, 4oz Flexible PCB Board, FR4 Double Layer Circuit Board |

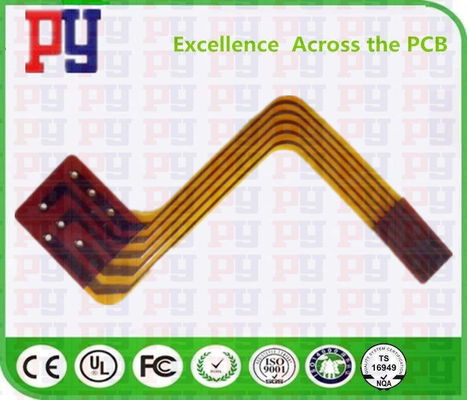

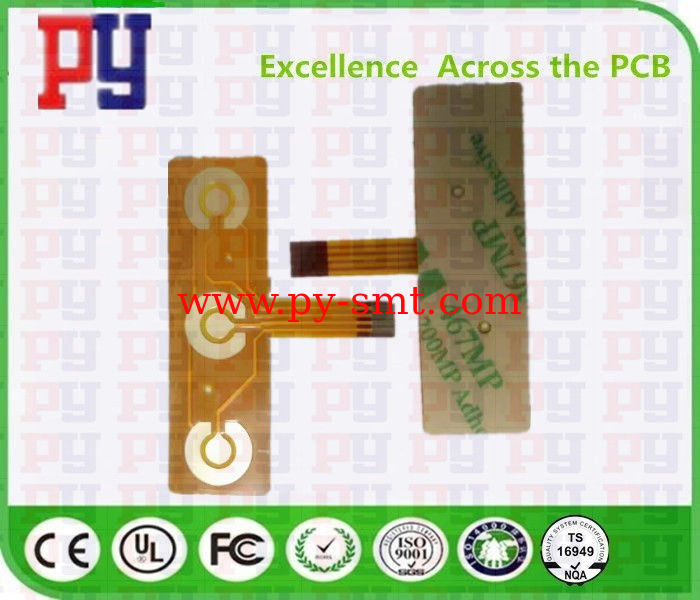

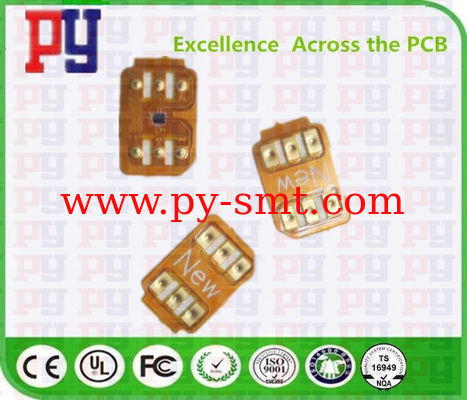

Multi-Layer Flexible PCB RoHS PCB Customized FPC Double Layer PCB

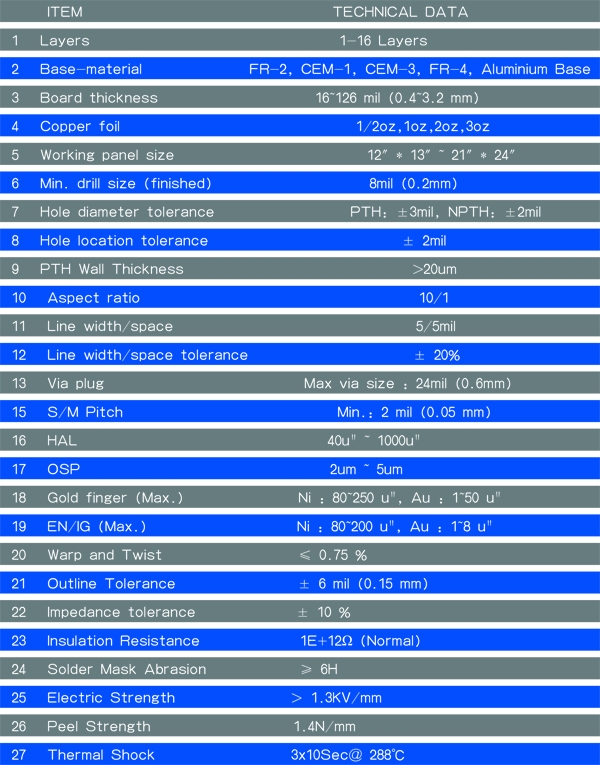

Capability
| | High precision prototype | PCB bulk production |
| Max Layers | 1-28 layers | 1-14 layers |
| MIN Line width(mil) | 3mil | 4mil |
| MIN Line space(mil) | 3mil | 4mil |
| Min via (mechanical drilling) | Board thickness≤1.2mm | 0.15mm | 0.2mm |
| Board thickness≤2.5mm | 0.2mm | 0.3mm |
| Board thickness＞2.5mm | Aspect Ration≤13:1 | Aspect Ration≤13:1 |
| Aspect Ration | Aspect Ration≤13:1 | Aspect Ration≤13:1 |
| Board thickness | MAX | 8mm | 7mm |
| MIN | 2 layers:0.2mm;4 layers:0.35mm;6 layers:0.55mm;8 layers:0.7mm;10 layers:0.9mm | 2 layers:0.2mm;4 layers:0.4mm;6 layers:0.6mm;8layers:0.8mm |
| MAX Board size | 610*1200mm | 610*1200mm |
| Max copper thickness | 0.5-6oz | 0.5-6oz |
Immersion Gold/
Gold Plated Thickness | Immersion Gold:Au,1—8u”
Gold finger:Au,1—150u”
Gold Plated:Au,1—150u”
Nickel Plated :50—500u” | |
| Hole copper thick | 25um 1mil | 25um 1mil |
| Tolerance | Board thickness | Board thickness≤1.0mm:+/-0.1mm
1.0mm<Board thickness≤2.0mm:+/-10%
Board thickness>2.0mm:+/-8% | Board thickness≤1.0mm:+/-0.1mm
1.0mm<Board thickness≤2.0mm:+/-10%
Board thickness>2.0mm:+/-8% |
| Outline Tolerance | ≤100mm:+/-0.1mm
100< ≤300mm:+/-0.15mm
>300mm:+/-0.2mm | ≤100mm:+/-0.13mm
100< ≤300mm:+/-0.15mm
>300mm:+/-0.2mm |
| Impedance | ±10% | ±10% |
| MIN Solder mask bridge | 0.08mm | 0.10mm |
| Plugging Vias capability | 0.25mm--0.60mm | 0.70mm--1.00mm |
Ping You Industrial Co.,Ltd
Ping You Industrial Co.,Ltd is a professional and reliable one-stop PCB solutions provider for customers specialized in manufacturing quick turn prototypes and small volumes.Topfast is responsible for overseas business development.With high quality and on-time delivery products we won the market's wide acclaim. We will continue to focus on customer satisfaction, along with "high quality "and "fast delivery", we will become a PCB service provider worthy of customer trust.
What′s critical to getting Your Engineering Design Built ASAP?
1. Get PY team on-board early in the process. We are here to serve you at every step of the process: From product conception thru. Manufacture of your design.
2. Provide complete information necessary to build your Design (See PCB Board Layout Quote Page ). Missing or incorrect information/files can delay your project. At the same time Huafu Fast′s team will assist you to developing any missing or incomplete information for your Design, Layout, or Manufacturing Package.
3. Communication is Key - If your project is time critical - start the communication process early. You will be amazed how working together can positively impact product: Quality, cost, reliability, and cycle time reduction for NPI & NPD and production. It also is a great support to building mature products that need to get done right.
4. If important to you provide a 24 hour contact name and number to keep your project moving in the event of design, manufacturing, and/or documentation questions.
5. Once the PCB Board Layout is complete and sent to you, check it thoroughly and release for fabrication and assembly ASAP.
