| Parts Name: |
Intelligent Feeder Calibration |
Voltage: |
100-240V |
| Size: |
400*500*1100mm |
Function: |
Calibration KME Machine Feeders |
| Packing: |
Calibration With Computer |
|
|
| High Light: |
pick and place feeder, intelligent feeder |

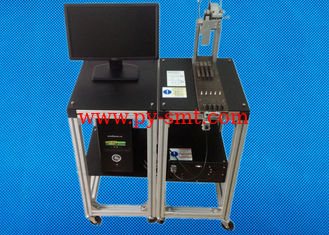

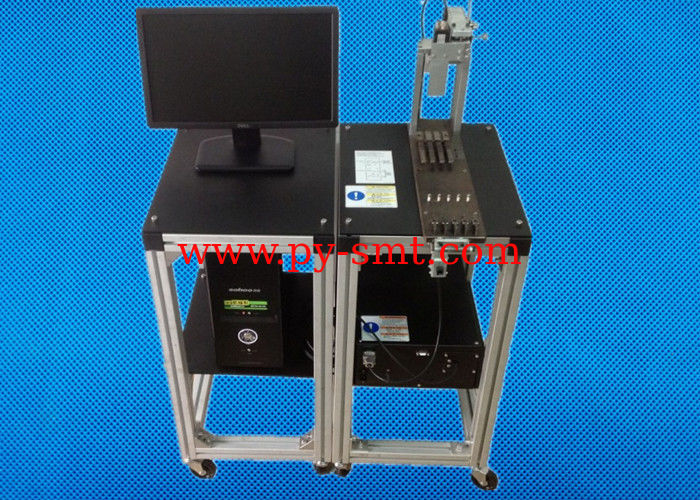

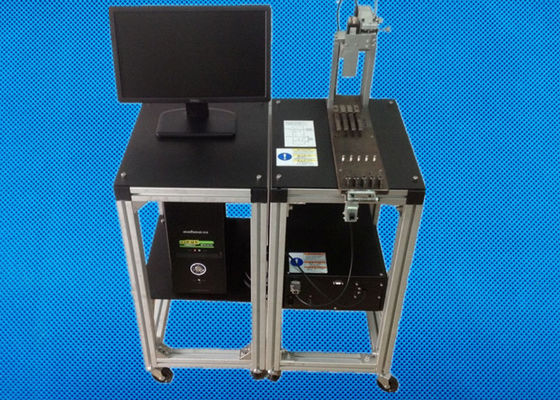

Panasonic NM-EJW-2A Intelligent feeder calibration for CM and NPM machine feeders
NM-EJW2A(Panasonic Smart Feeder Calibrator)
Product Name: Calibrator Jig Feature: Original
Warranty Time: 6 Months Application: CM402,cm602,NPM,CM212
Type: Free Standing Packing: Wooden
NM-EJW2A Calibration jig of CM402 feeder
NM-EJW2A adjust jig, it is for CM602,CM402,NPM feeders.
Specifications:
NM-EJW2A Application CM402,CM602,NPM Feeder
First part code NM-EJW2A
Demensions 400*500*1100mm
Electric Source 100-240V`50/60Hz
Scope of the applicable 8mm-32mm
Adjusted accuracy ≤0.02mm
Corrected accuracy ≤0.05mm

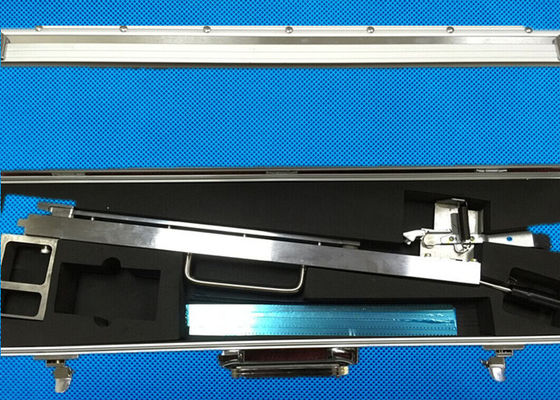

Jig tape set 1set(8mm,12mm,16mm,24mm,32mm,master jig)
Description:
1. Adopt hardened metal, new spare parts, they are used for CM402/602/212/NPM feeders, part code is :NM-EJW2A.
2. The intelligent feeder check unit allows the customer to perform maintenance on the intelligent feeders(tape feeders 8mm to 32mm wide)
2-1. A periodic check can be made after a fixed number of operations.
2.2. The customer can adjust the component-feeding position after replacing the parts of a malfunctioning feeder(limited to components).
2-3. The feeder maintenance history will be managed on a PC.
3. Features:

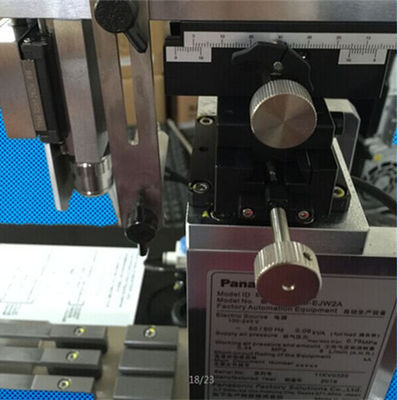

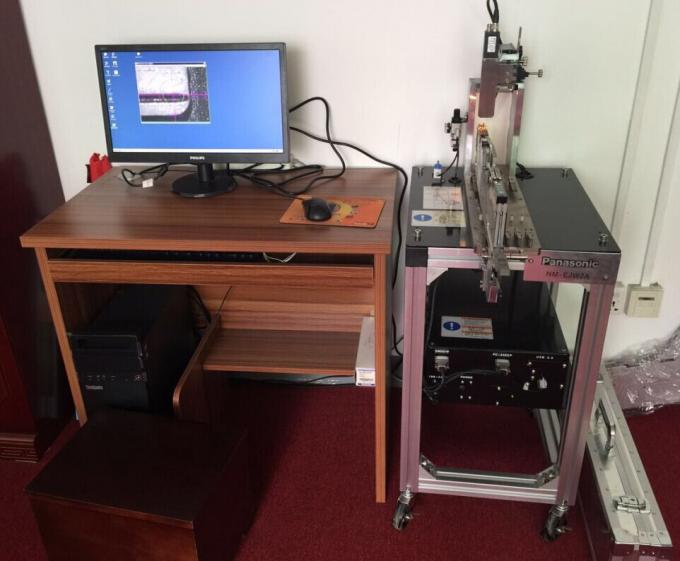

The camera-captured image will be displayed on the PC screen, not on the dedicated screen any longer, therefore, the reference position of feed direction can be visually adjusted through the use of PC.
Also the target reference frame to be used for adjustment can be selected from a pull-down list on the PC screen, moreover, the dedicated cart with casters provides easy carrying.
Applications:
Business Organizations
Factory, electronic factory
Equipment machine
CM402,CM602,NPM FEEDERS
Scope
Feeder Offset,gear detection and restore,Software upgrade
