Voltage: |
380VAC 50Hz |
Rated Capacity: |
36KW |
Usage: |
Pcb Soldeing |
Flux Capacity: |
Approx.18L |
Wave Height: |
Approx.12mm |
Conveying Dire: |
Left To Right |
High Light: |
auto screw tightening machine, epoxy dispensing machine |

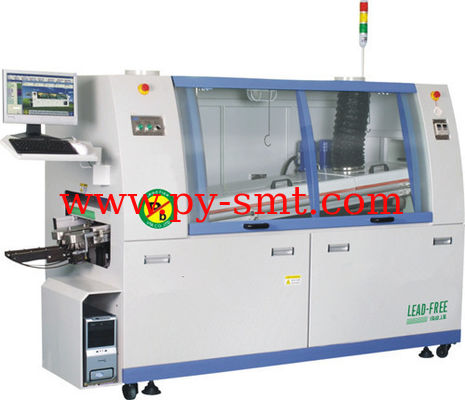

Wave Soldering Machine SMT Assembly Equipment For PCB Assembly Line 250
Product featuModel
V-250C PC
V-250M Touch
V-250A Button
Control method
PC+PLC
Computer+PLC
Touch+PLC
Touchscreen+PLC
Button+PLC
Keys+PLC
Conveyor motor
1P AC220V 60W
Conveyor speed
300-1500mm/min
Conveyor speed
50-300mm(w)
PID Contorl)Temperature
Power: 7.5KW Length: 1200mm A section of PID control
Temperature: (room temperature -250 ℃)
Preheating Zone Power
12KW (cast iron heating plate) (room temperature -300 ℃)
Solder temperature
280KG
Wave height
Solder pot wam-up time
0-12mm
Power supply
3P AC220V 0.18KW×2pcs
Finger cleaning pump
1P AC220V 6W
Cooling system
Ordinary air-cooled
Cooling system
L→R(R→L)
Flux capacity
6Litres
Air pressure of flux
3-5BAR
Conveyor angle
4-6°
Power supply
3P AC380V 50HZ
Normal/starting power
20KW/5KW
Dimension
2600(L)×1200(W)×1650mm(H)
Appearance size
3200(L)×1200(W)×1650mm(H)
Net weight
800KG
